Erosion & Corrosion Detection / Top Side

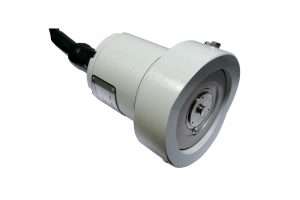

Echo monitors liquid (water) and solid particles in gas flow and solid (sand) particles in oil pipeline. Employing ultrasonic technology Echo sand detector, detects the acoustic noise generated by sand and other particles when they collide into the walls of pipeline and notify operator if their concentration reaches above safe level.
Being the next generation of smart instruments Echo uses digital signal processing algorithms to provide real time data to operator. The device can be easily integrated into any system via digital or analog interfaces or wireless.
The Echo-EC monitors the condition of pipes and provide information about its erosion corrosion rate in various applications.
ECHO-EC uses a group of piezo electric acoustic sensors to detect wall thickness by pulse-echo method. The quantity of sensors in a system varies from 4 to 32 pcs
This date is subsequently processed in the onboard digital processing unit and transmitted to the system via means of 4-20mA, RS-485, HART and if required relays also.
Based on real time measuring the detector provides the ultimate benefit to the operator for visualising real time wall thickness data.
The non intrusive sand detector is ideal for all types of installations, whether aging or new.

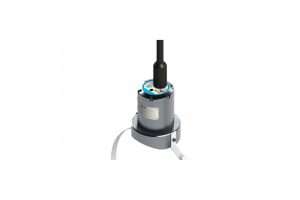

The ECHO-EC can be retrofitted to old pipes, without any hot work permits or any additional works, simply clamping it on will be enough.
Locations for installation:
